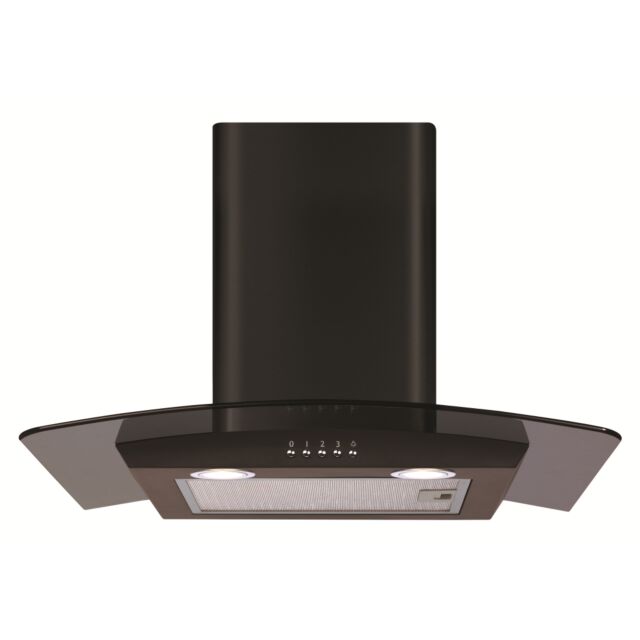

CDA ECP62BL Curved Glass Extractor Ducted/Re-Circulating In Black
£199.00
Please Call 01202 882615 for availability
- ColourBlack
- Width (Aprox)60cm
- Manufacturer Labour Guarantee2 years
- Manufacturer Parts Guarantee5 years
- EAN5060143318214

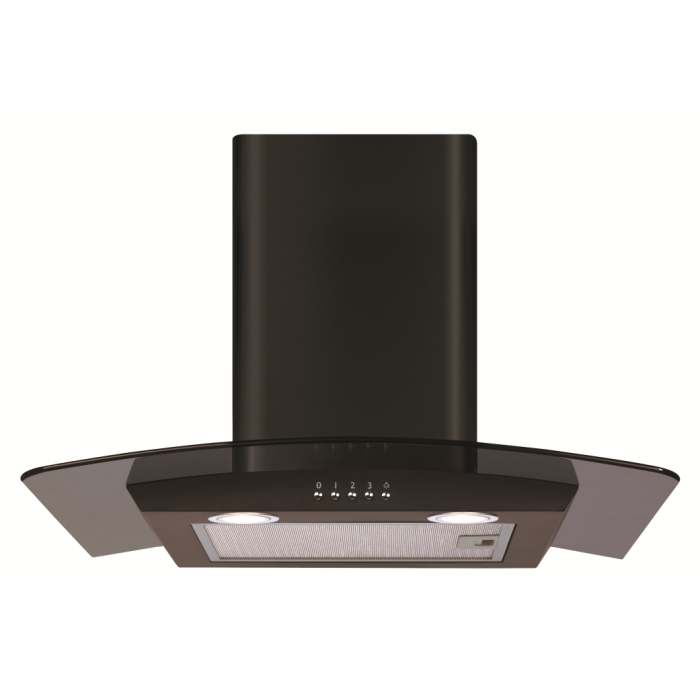

CDA ECP62BL Curved glass extractor, Ducted/re-circulating, LED lights.
The CDA ECP62BL has a striking curved glass black design which is both chic and practical. The extractor has 3 speeds with push button control and built in LED lights to provide good illumination.
The CDA ECP62BL has a striking curved glass black design which is both chic and practical. The extractor has 3 speeds with push button control and built in LED lights to provide good illumination.
Fitting Notes:
Fitting note: please ensure that you check the ceiling height is sufficient to allow the required clearance between the hob and extractor.
Technical Specification:
Outlet diameter: It is best to use the AED6 (150mm) ducting kit rather than the AED5 (120mm) with the adaptor. This keeps noise levels to a minimum. mm
Outlet diameter: 120mm/150mm mm.
Protection class: Class I.
Mains lead rating: H05VV-F m.
Mains lead length: 1 m.
Power supply: 3 A.
Required height over electric hobs: 600 mm (min).
Required height over gas hobs: 700 mm (min).
Extraction Rates And Noise:
Noise level at first speed: 50 dBA.
Extraction rate at second speed: 302 m³/hr.
Extraction rate: 391 m3/hr.
Noise level at second speed: 58 dBA.
Extraction rate at first speed: 218 m³/hr.
Extraction rate at third speed: 391 m³/hr.
Noise level at third speed: 60 dBA.
Noise level: 60 dBA.
Filters:
Charcoal filters: CHA12 (pack of 1).
Ducting kit: AED610/660 or AED510/560ith adaptor.
Number of charcoal filters (optional): 1.
Number of grease filters: 1.
Number of layers: 4
Optional Accessories:
Ducting kit code: 150mm, AED 610/660.
Ducting kit code: 120mm, AED 510/560.
Fitting note: please ensure that you check the ceiling height is sufficient to allow the required clearance between the hob and extractor.
Technical Specification:
Outlet diameter: It is best to use the AED6 (150mm) ducting kit rather than the AED5 (120mm) with the adaptor. This keeps noise levels to a minimum. mm
Outlet diameter: 120mm/150mm mm.
Protection class: Class I.
Mains lead rating: H05VV-F m.
Mains lead length: 1 m.
Power supply: 3 A.
Required height over electric hobs: 600 mm (min).
Required height over gas hobs: 700 mm (min).
Extraction Rates And Noise:
Noise level at first speed: 50 dBA.
Extraction rate at second speed: 302 m³/hr.
Extraction rate: 391 m3/hr.
Noise level at second speed: 58 dBA.
Extraction rate at first speed: 218 m³/hr.
Extraction rate at third speed: 391 m³/hr.
Noise level at third speed: 60 dBA.
Noise level: 60 dBA.
Filters:
Charcoal filters: CHA12 (pack of 1).
Ducting kit: AED610/660 or AED510/560ith adaptor.
Number of charcoal filters (optional): 1.
Number of grease filters: 1.
Number of layers: 4
Optional Accessories:
Ducting kit code: 150mm, AED 610/660.
Ducting kit code: 120mm, AED 510/560.
| Manufacturer | CDA |
|---|---|
| GTIN | 5060143318214 |
| Colour | Black |
| Model Number | ECP62BL |
| Meta Title | Buy the CDA ECP62BL Extractor at Dacombes of Wimborne Dorset. |
| Width (Aprox) | 60cm |
