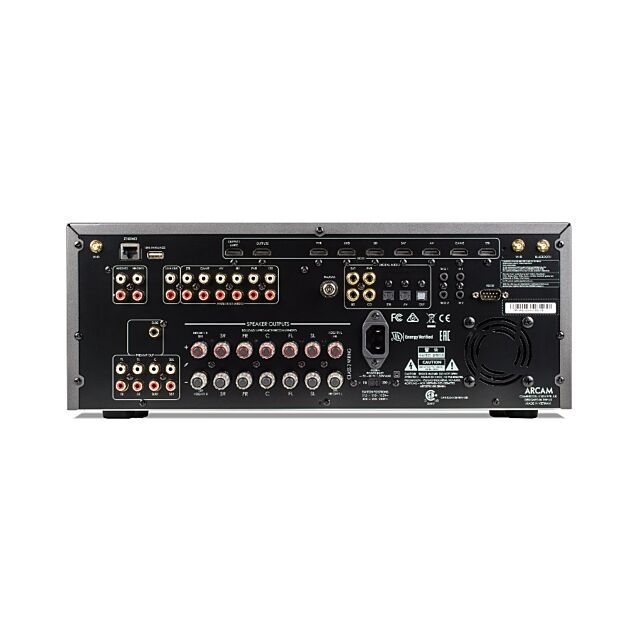

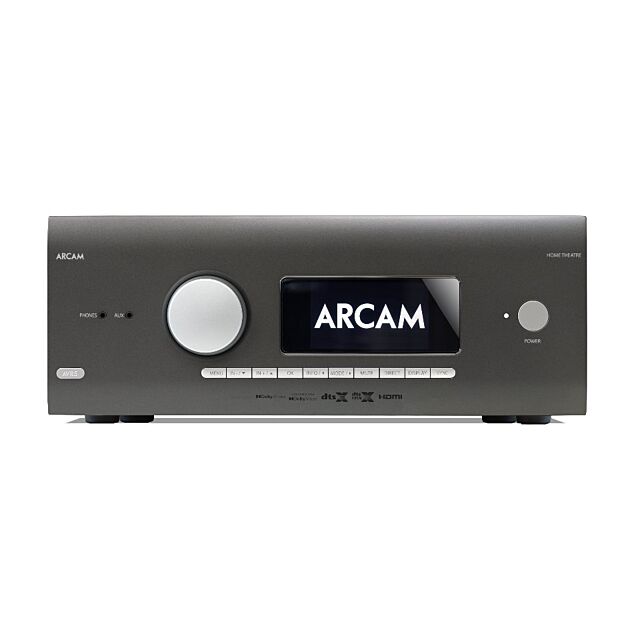

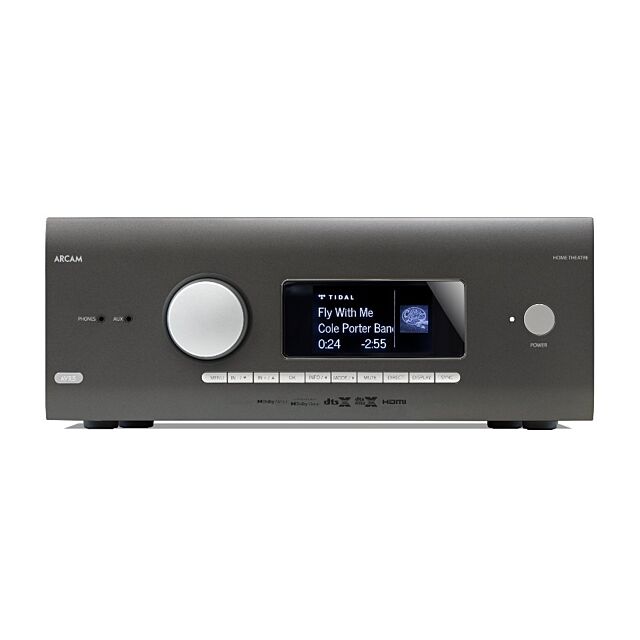

ARCAM AVR5 AVR Class A/B Multi-Channel Home Theatre AV Receiver

In Stock
Fast Local Delivery Available
View in Store
  • Dacombes of Wimborne
  • On Display
  • In Stock for Local Delivery or Click & Collect
Dolby Atmos + DTS:X 7.1.4 decoding. 4K (UHD) HDMI2.0b with HDCP2.2. 7 HDMI inputs, 2 HDMI outputs, eARC compatible. Ready for Dirac Live® room correction*.
  • Manufacturer Guarantee1 year
  • EAN050667379063
ARCAM AVR5 Entry Premium AVR Class A/B Multi-Channel Audio Video Receiver.

The Arcam AVR5 is a high-performance audio/visual receiver that delivers stunning realism for the ultimate home cinema experience. Native 12-channel decoding of immersive audio from Dolby Atmos and DTS:X, the AVR5 can deliver incredible theatre experiences.

The Arcam AVR5 is designed with a passion for music and movies, bringing both to life with truly high fidelity. The AVR5 features an over engineered power supply and transformer for real world power with low noise. The Class AB amplifiers are based upon those in Arcam stereo amplifiers, guaranteeing musicality otherwise not heard from other AV receivers.

The performance and musicality can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, Bluetooth with aptX®HD, Spotify Connect, and UPnP with the MusicLife app.
Continuous power output, per channel, 8Ω/4Ω
2 channels driven, 20Hz - 20kHz, <0.02% THD 80W/100W
2 channels driven, 1kHz, 0.2% THD 85W/120W
7 channels driven, 1kHz, 0.2% THD 60W/85W
Residual noise + hum (A-wtd) <0.15mV
Stereo Line Inputs
Maximum input 4.5V rms
Nominal sensitivity 1V, 2V, 4V (user adjustable)
Input impedance 47kΩ
Signal/noise ratio (A-wtd ref 100W) normal/stereo direct 100dB/110dB
Frequency response 20Hz—20kHz ± 0.2dB
Preamplifier Outputs
Nominal output level 1V RMS (max. 5V RMS)
Output impedance 560Ω
THD+N (20Hz—20kHz) –100dB
Headphone Output
Maximum output level into 32Ω 5Vrms
Output impedance <100Ω
Mains voltage 110–120V or 220–240V, 50–60Hz.
Power consumption (maximum) 1.5kW (Thermal dissipation approx. 5200 BTU/hour).
Power consumption (idle, typical) 90W (Thermal dissipation approx. 340 BTU/hour).
Power consumption (standby) <0.5W.
Dimensions W x D (including speaker terminals) x H (including feet) 433 x 425 x 171mm.
Weight (net) 16.5kg.
Weight (packed) 19.8kg.
Supplied accessories Mains lead.
Remote control with 2 x AAA batteries.
DAB/FM aerial.
3 x WiFi/Bluetooth antennas.
More Information
Manufacturer ARCAM
GTIN 050667379063
Model Number AVR5
